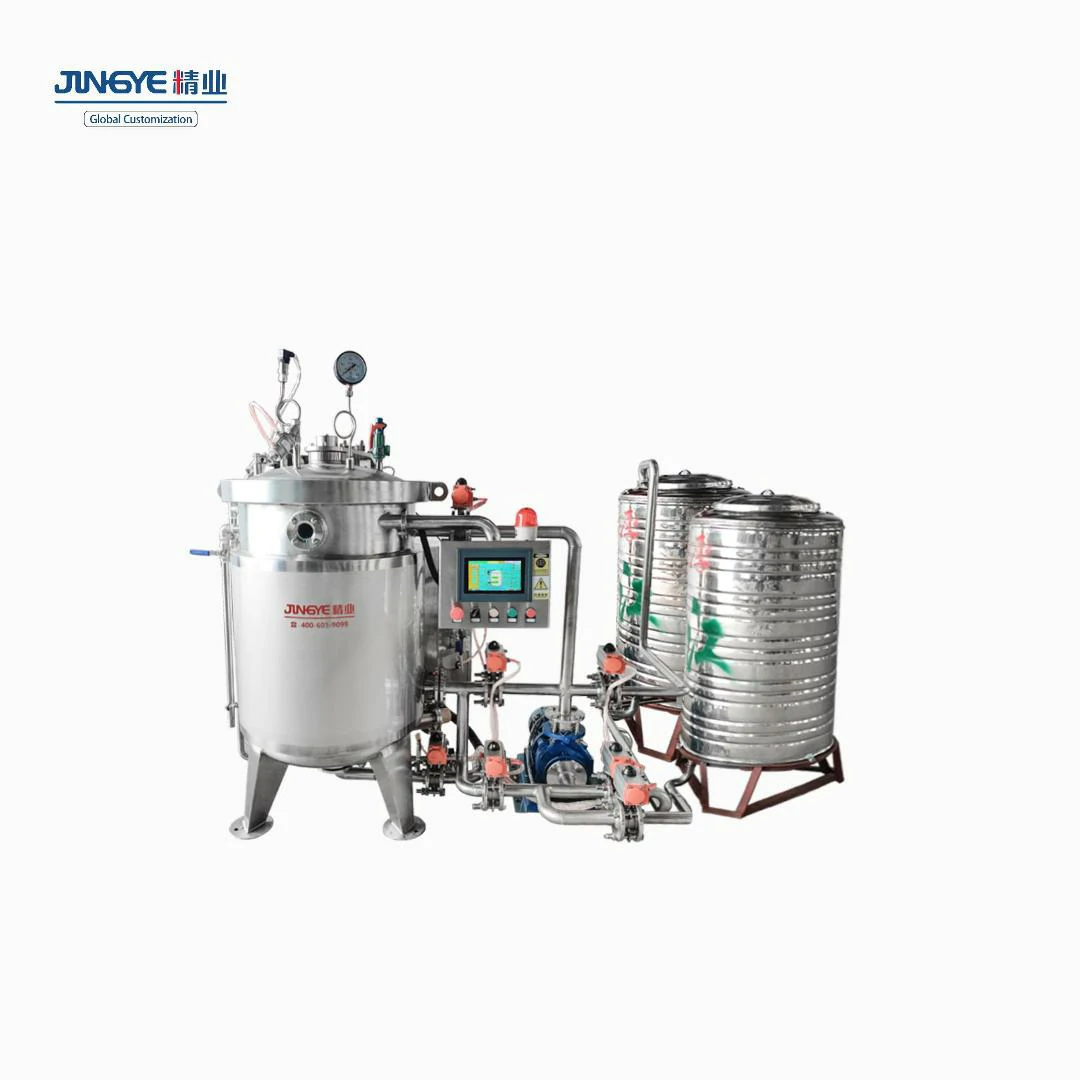

Vertical sterilization retort
Vertical sterilization retort
Vertical sterilization retort
Vertical sterilization retort

Vertical sterilization retort

Features :

Material : SUS 304/316 material is used, which is beautiful and durable, smooth and easy to clean.

Composition : It is mainly composed of sterilization tank, water inlet and outlet pipes, heating system, PLC control system and water storage tank.

Function : PLC programming intelligent control system automatically sterilizes and realizes standardized batch production.

Safety : The system is equipped with fault self-checking supervision measurement module and misoperation safety alarm module

Operation : The feeding and discharging adopts frame structure, which is easy to operate

Others : The equipment size and function configuration can be freely customized according to customer needs. If there is any problem with the whole machine accessories within one year, the company will replace it free of charge.

Whatapp:+86 181 7003 7990

Email: aloe@cnjymachine.com

Product Details

Vertical sterilization retort

Applications
Vertical steam sterilizer is mainly used for high temperature sterilization of meat products, egg products, dairy products, bone broth, beverages and pet food to extend the shelf life of food.
Features
Made of food grade 304/316 material, fully automatic control by PLC+touch screen programming, optional electric heating/steam heating, automatic control of sterilization process, quickly kills bacteria, viruses and other microorganisms through high temperature and high pressure steam.
Applications

Model

Volume

(L)

Diameter

mm

Heating power

Kw

Heating method

Dimensions

mm

SLG-250L

250

Φ600*800

24

Z-steam/D-electric

1450*1850*1550

SLG-500L

500

Φ800*1000

36

Z-steam/D-electric

1650*2050*1750

SLG-1000L

1000

Φ1000*1200

60

Z-steam

1850*2250*1980

SLG-1500L

1500

Φ1200*1500

Z-steam

2050*2450*2250

SLG-2000L

2000

Φ1300*1500

Z-steam

2150*2650*2350

ABOUT JINGYE MACHINERY

Jiangxi Jingye Machinery Technology Co., Ltd. is a machinery manufacturing enterprise integrating technology R&D.  We specializes in the production and sales of food, beverage, pharmaceutical and chemical machinery, sanitary fluid pump valve accessories, etc., and provides process design, manufacturing and installation of food and beverage production lines, liquid milk production line sterilization equipment, etc. Commissioning, technical training and after-sales service to turnkey overall engineering services.

The main products include: autoclave, pressure cooker, mixing tanks, jacketed pots, reaction tank, plate heat exchanger, fermentation tanks, blending tanks, hot and cold cylinders, centrifugal pumps, beverage pumps, etc. Widely applicated in food and beverage category include production lines for sauces, bone broth, hummus, syrup, milk, juice, protein drinks (soy milk), fresh milk, tea drinks, eight-treasure porridge, etc.

The company takes product quality excellence as its core and service quality as its goal. While digesting and absorbing advanced domestic and foreign technologies, it combines its own advantages to continuously innovate and make progress. In line with the business purpose of "customer interests first, product quality first", we provide our customers with high-quality products and services.
