Open type mixing tank
Open type mixing tank
Open type mixing tank
Open type mixing tank
Open type mixing tank
Open type mixing tank
Open type mixing tank

Open type mixing tank

Features :

Material : SUS 304/316 material is used, which is beautiful and durable, smooth and easy to clean.

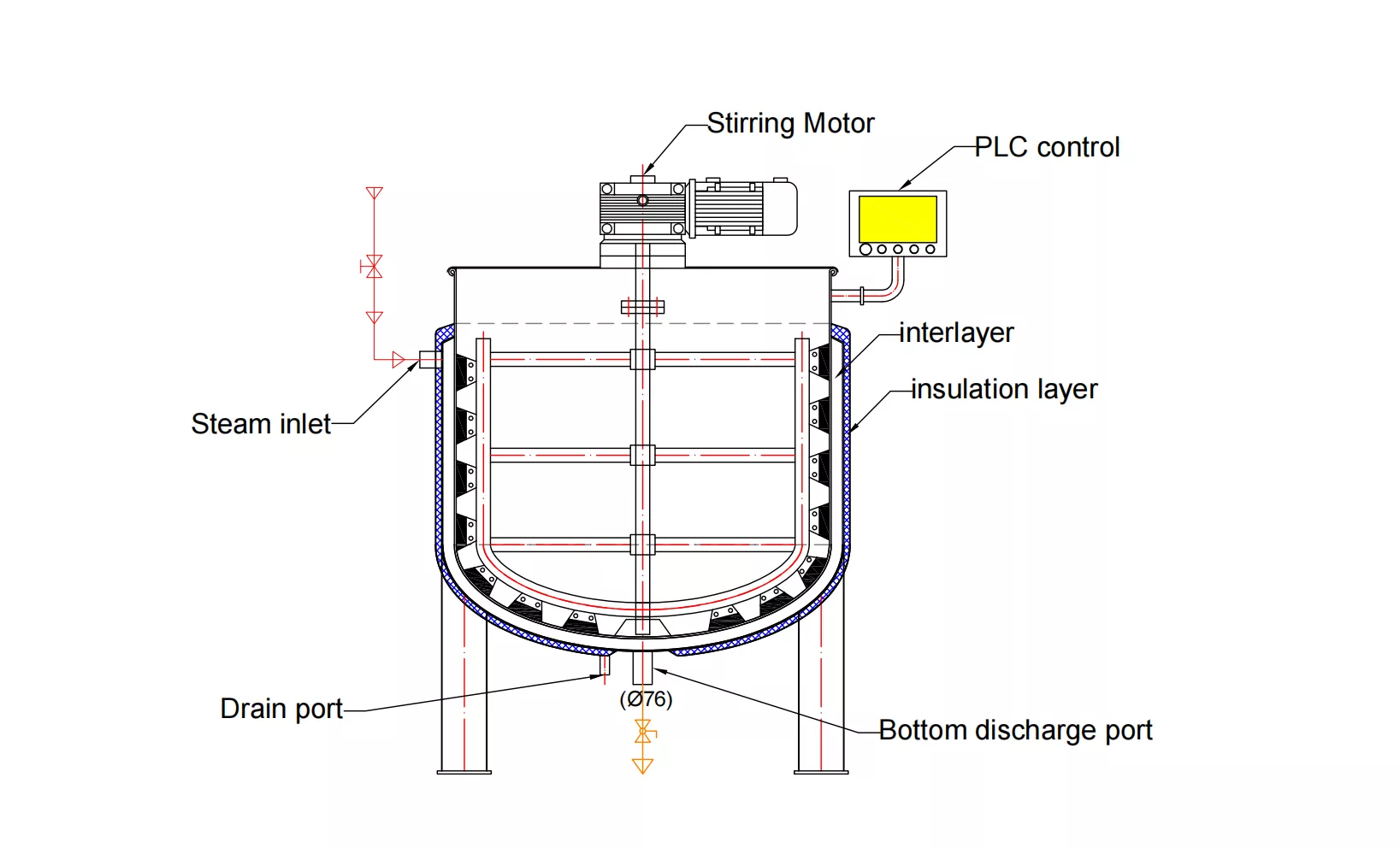

Composition : It is mainly composed of tank body, agitator, water inlet and outlet pipes, heating system, and PLC control system.

Function : PLC programming intelligent control system automatically cooks and stirs to achieve standardized batch production.

Safety : The system is equipped with fault self-checking supervision measurement module and misoperation safety alarm module

Operation : The feeding and discharging adopts the upper inlet and lower outlet pipe structure, which is easy to operate

Others : The equipment size and functional configuration can be freely customized according to customer needs. If there is any problem with the whole machine accessories within one year, the company will replace it free of charge.

Whatapp:+86 181 7003 7990

Email: aloe@cnjymachine.com

Product Details

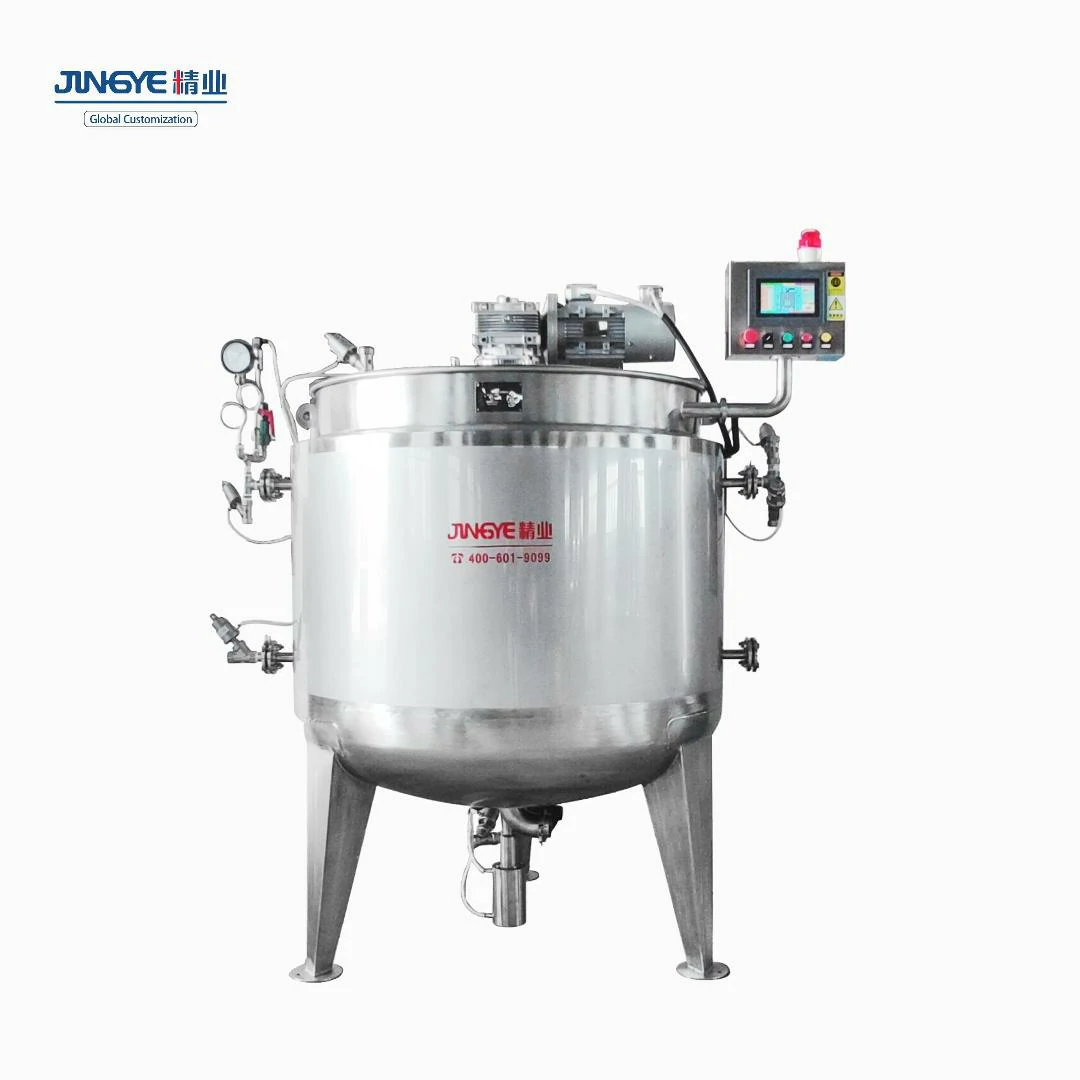

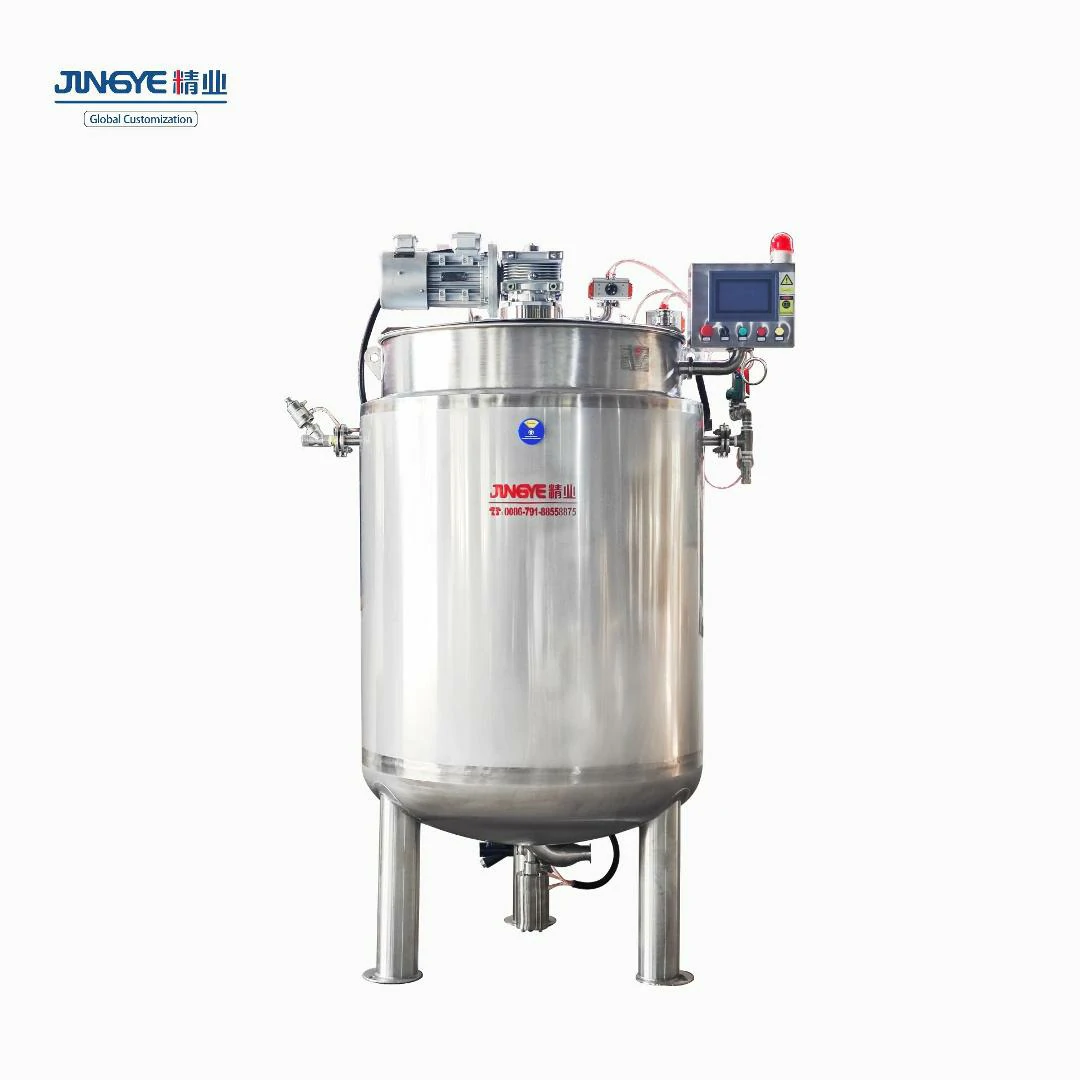

Open type mixing tank

Applications
It is suitable for heating, cooling, mixing, emulsifying and other process requirements of factory processing sauces, milk, chocolate, porridge and other materials. The plc intelligent control mixing system ensures uniform mixing of materials, and the open design is easy to operate and observe.
Features
Made of food grade 304/316 material, PLC+touch screen programming automatic control reduces manual intervention, a variety of agitators are available, and the bottom elliptical head structure enables the agitator to perfectly contact the pot wall; the materials are mixed more evenly and are convenient for bottom discharge.
Applications

Model

Volume

(L)

Diameter

mm

Heating power

Kw

Heating method

Dimensions

mm

JYH-JCJE-500

500

Φ900*800

2.2

Z-steam/D-electric

1350*1150*2250

JYH-JCJE-1000

1000

Φ1100*1000

/

Z-steam/D-electric

1550*1350*2450

JYH-JCJE-2000

2000

Φ1300*1500

3

Z-steam

1850*1650*2850

JYH-JCJE-3000

3000

Φ1600*1500

/

Z-steam

2150*1950*2950

JYH-JCJE-5000

5000

Φ1800*2000

/

Z-steam

2350*2150*3450
